Product Description

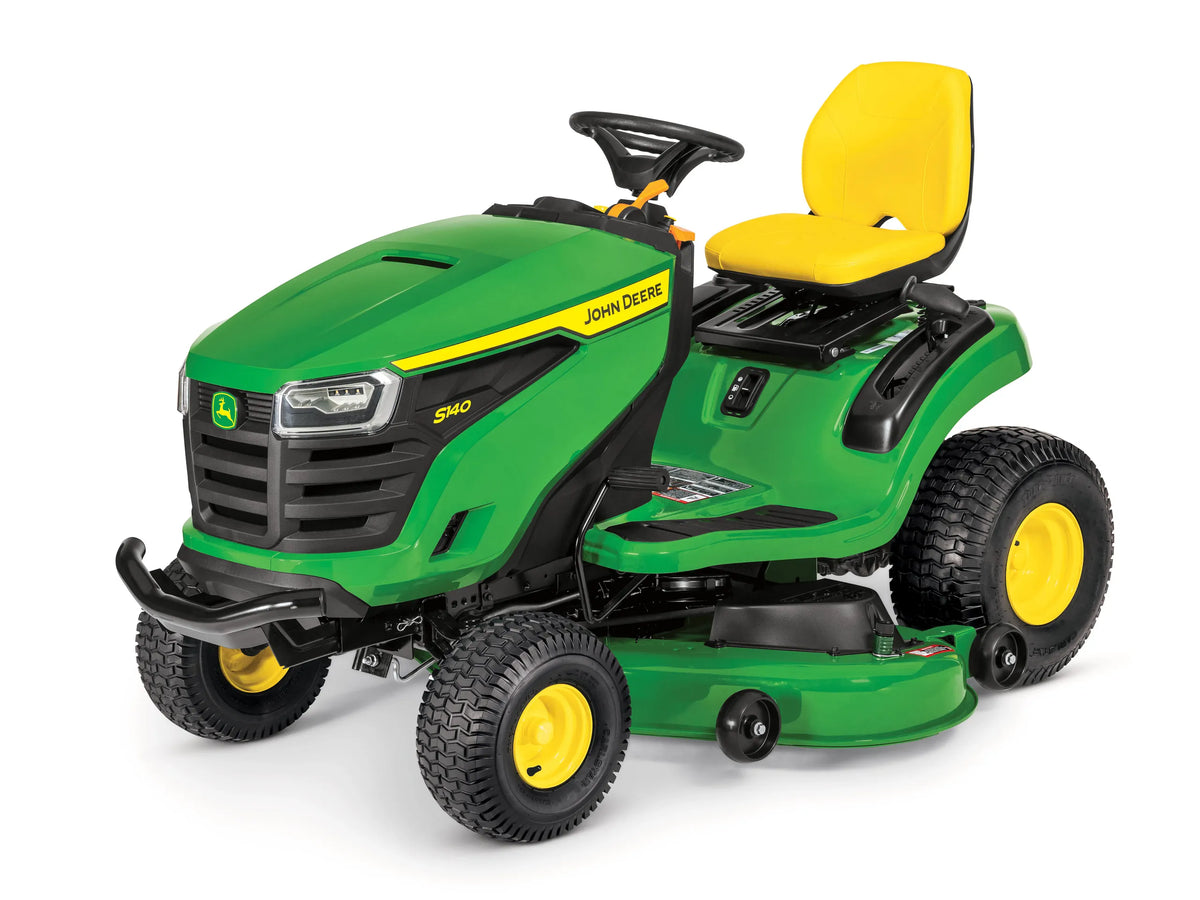

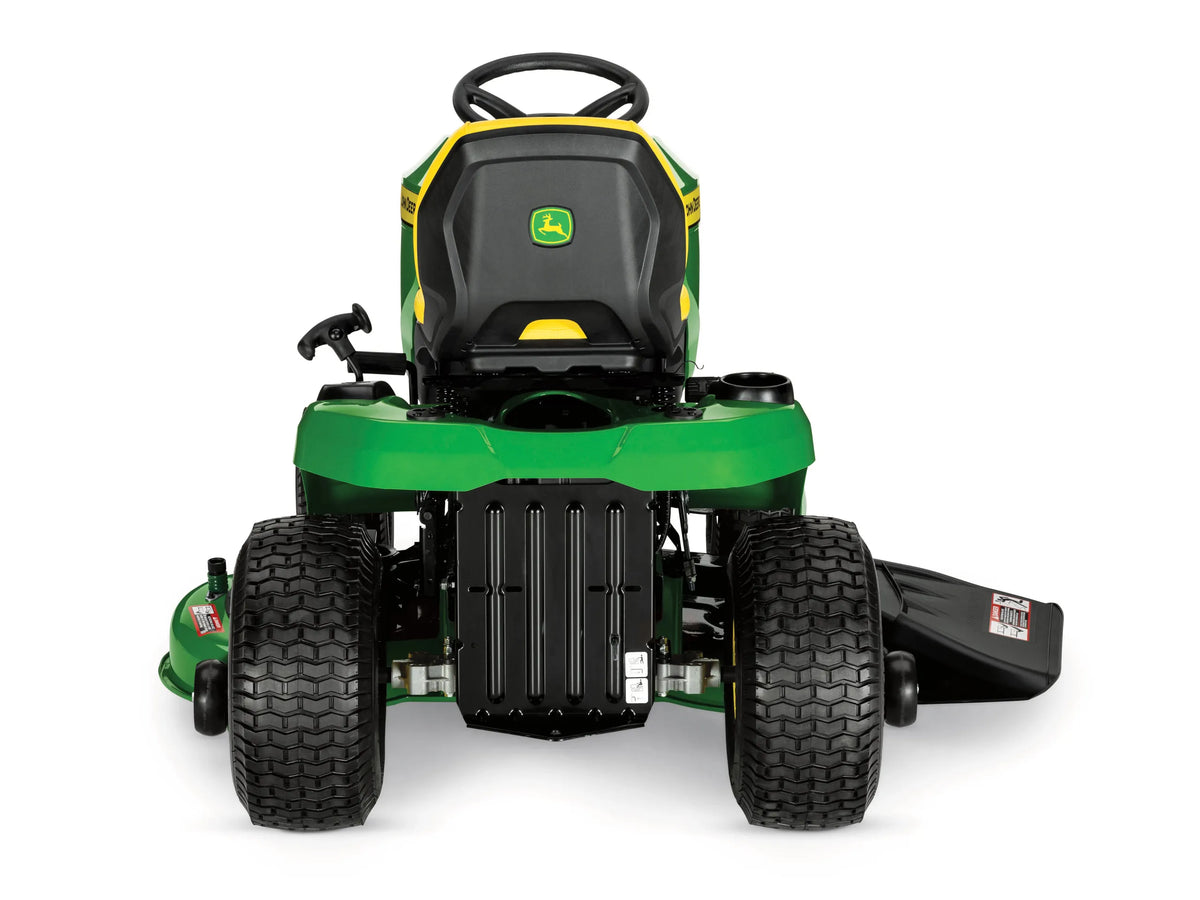

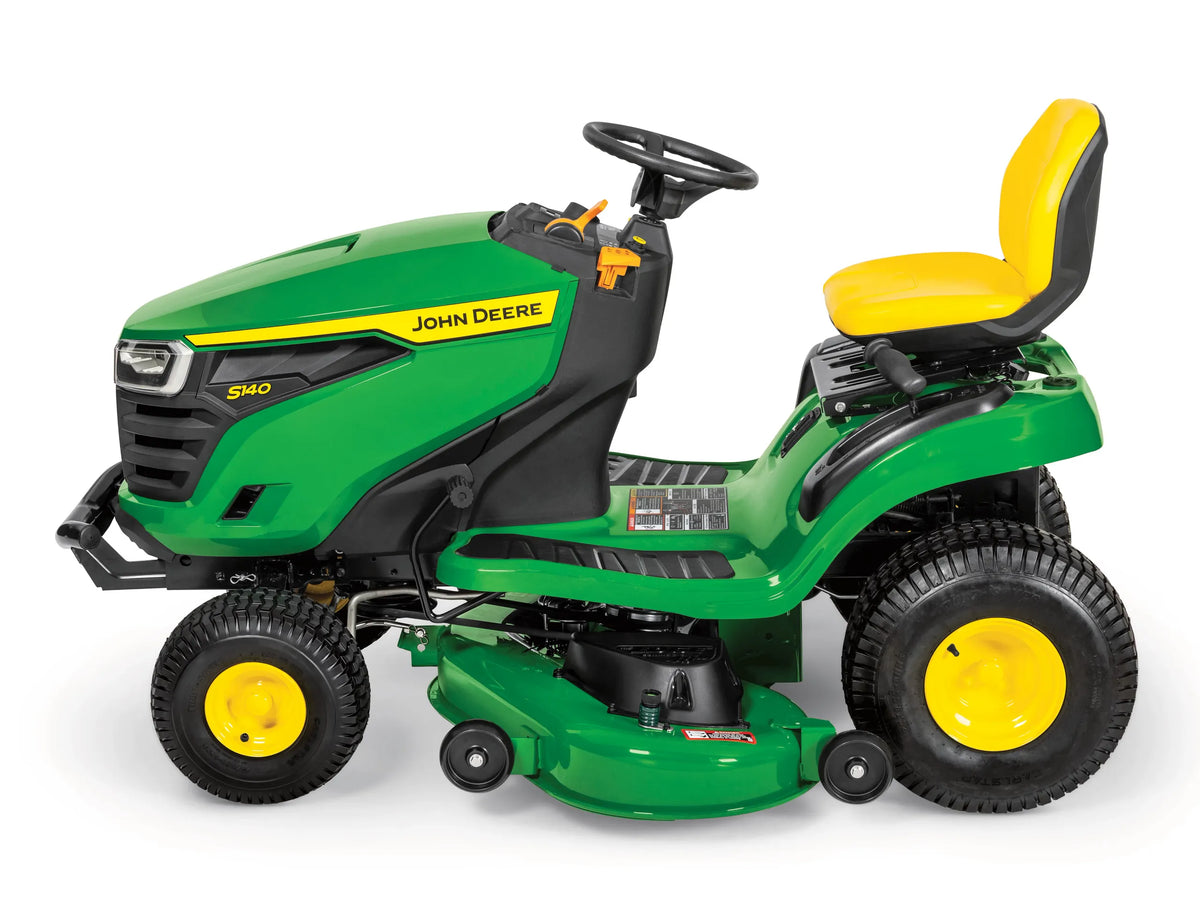

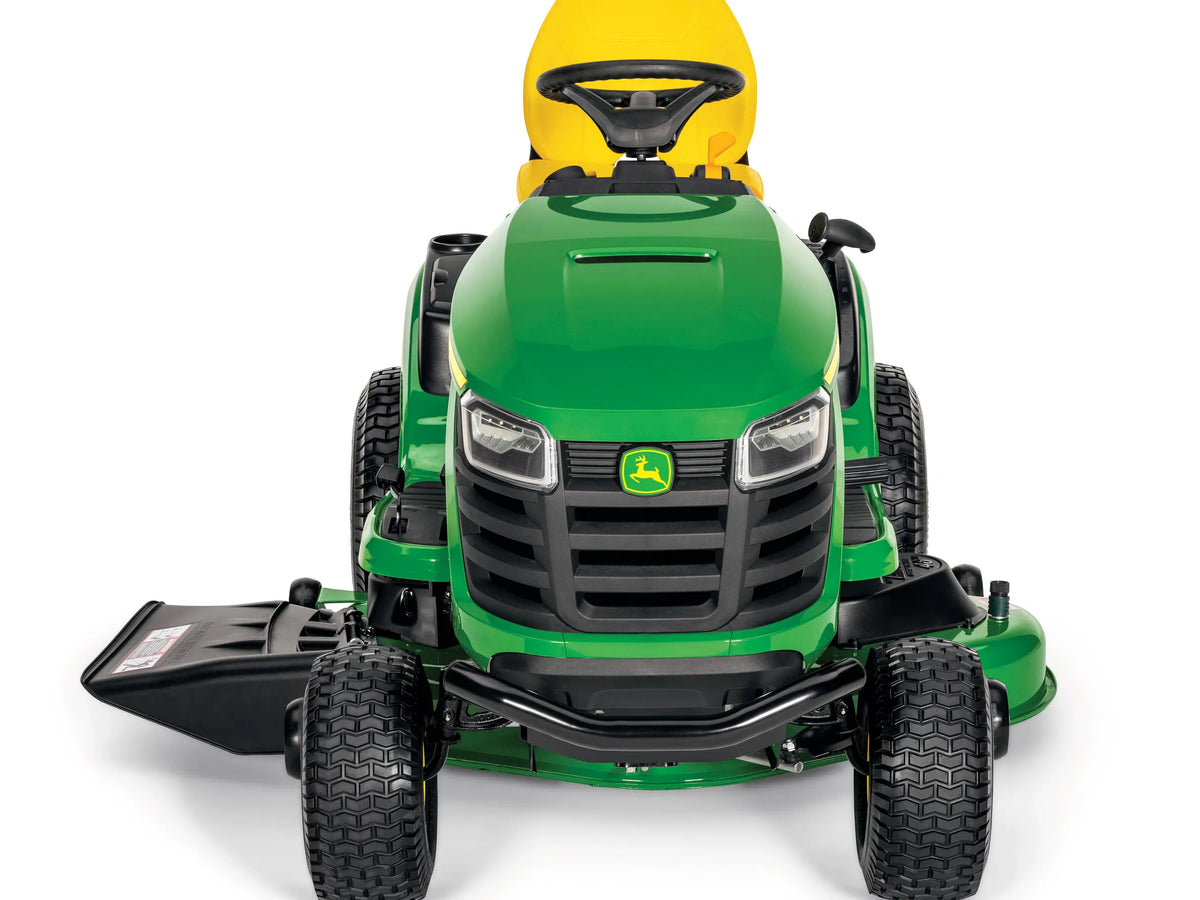

The John Deere S140 48-Inch 22 HP V-Twin Gas Hydrostatic Riding Lawn Tractor delivers a practical combination of strong residential power, wide-deck productivity, smooth hydrostatic operation, and the familiar durability of John Deere’s 100 Series.

Built for homeowners who want to cover more lawn in fewer passes, the S140 is equipped with a 48-inch Edge™ mower deck. The larger deck gives the tractor an advantage over smaller 42-inch lawn tractors when mowing medium and larger residential properties, helping reduce the number of passes required during routine lawn maintenance.

Power comes from a 22 HP V-Twin gasoline engine. John Deere identifies the engine as model 44N677 (M44) with a displacement of 44.2 cubic inches. The V-Twin layout is well suited to the wider 48-inch cutting system, providing smooth, consistent power for normal mowing conditions.

The engine uses an overhead-valve design with full-pressure lubrication and a replaceable oil filter, supporting dependable residential operation and straightforward routine maintenance.

Driving the S140 is easy thanks to its hydrostatic transmission with side-by-side foot pedals. Rather than selecting fixed transmission gears, the operator can smoothly control forward and reverse movement using separate pedals.

This setup is particularly useful when mowing around landscaping, trees, fences, garden borders, and other obstacles because travel speed and direction can be adjusted frequently without manual shifting.

Blade engagement is handled by an electric PTO system, allowing the mower deck to be conveniently engaged from the operator station.

The 48-inch mower deck uses a three-blade rotary cutting system. Cutting height can be adjusted from approximately 1 inch to 4 inches, allowing the mowing height to be tailored to different grass conditions, seasons, and lawn-care preferences.

The S140 also places significant emphasis on operator convenience. A comfortable 15-inch seat, open operator platform, accessible controls, LED headlights, hour meter, and mechanical fuel gauge help make regular mowing more comfortable and straightforward.

A 2.4-gallon rear-mounted gasoline tank provides useful operating capacity, while the fuel gauge is positioned so the operator can check the fuel level while seated.

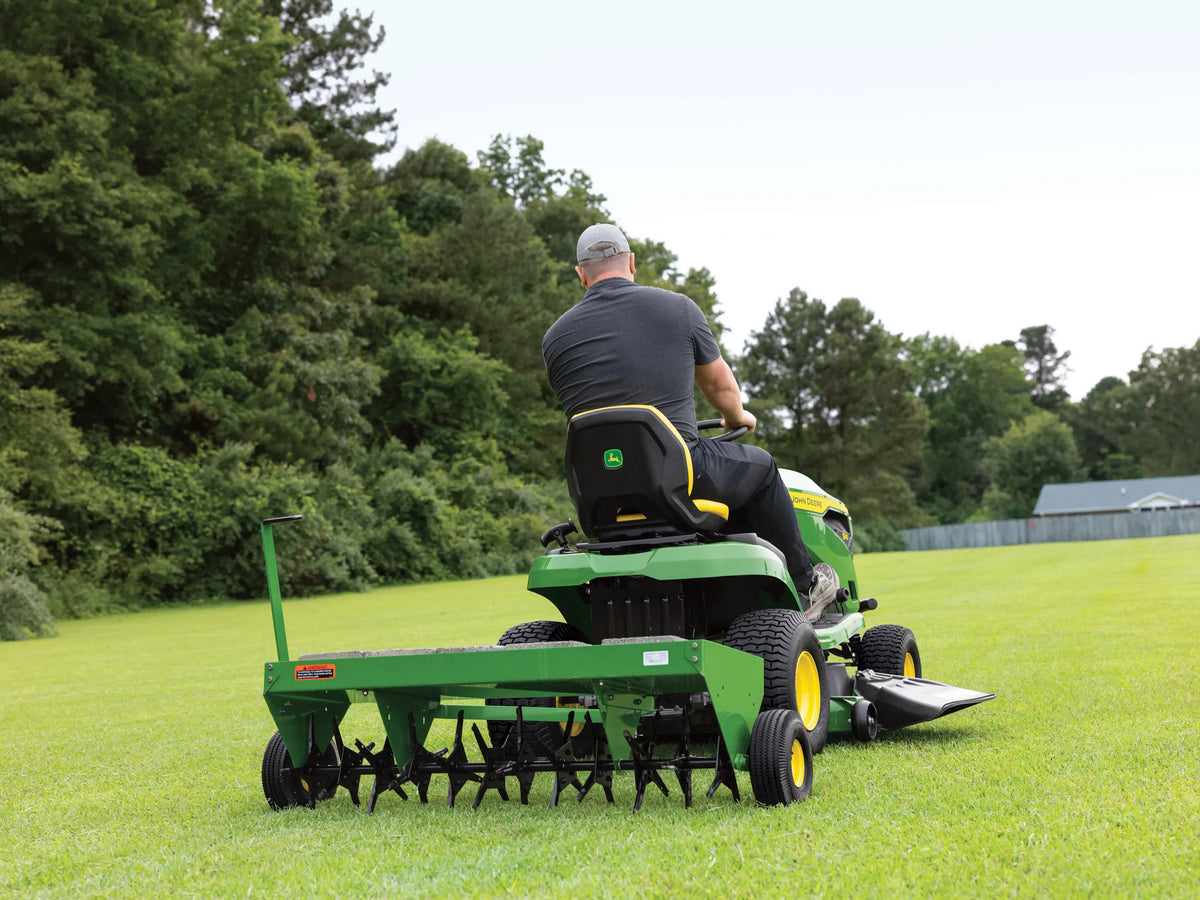

The tractor is also designed as more than a basic mower. Compatible John Deere accessories can expand its capabilities for grass collection, hauling, seasonal cleanup, and other property-care jobs.

For homeowners seeking a traditional lawn tractor with a wider cutting deck, V-Twin power, smooth pedal-controlled hydrostatic drive, and excellent attachment versatility, the John Deere S140 is a highly capable residential mowing platform.

Key Features

22 HP V-Twin Engine

The S140 is powered by a 22 HP V-Twin gasoline engine, providing dependable power for its 48-inch mowing system.

48-Inch Edge™ Mower Deck

A wide 48-inch cutting deck increases mowing productivity and reduces the number of passes needed across larger lawn areas.

Three-Blade Cutting System

Three rotary blades provide cutting coverage across the full 48-inch mower deck.

Hydrostatic Transmission

Smooth hydrostatic drive allows continuously variable travel speed without conventional manual gear shifting.

Side-by-Side Foot Pedals

Separate forward and reverse pedals make speed and direction changes easy and intuitive.

Electric PTO

Convenient electrical blade engagement allows the mower deck to be activated directly from the operator station.

Adjustable Cutting Height

The mower deck can be adjusted from approximately 1 to 4 inches for different grass types and lawn conditions.

2.4-Gallon Fuel Tank

A rear-mounted 2.4 U.S. gallon fuel tank provides useful capacity for extended residential mowing.

Mechanical Fuel Gauge

Fuel level can be monitored from the operator position.

LED Headlights

Two standard LED headlights help improve visibility during lower-light mowing conditions.

Hour Meter

The integrated hour meter makes it easier to track operating hours and schedule routine maintenance.

15-Inch Operator Seat

A comfortable operator seat and spacious platform help reduce fatigue during longer mowing sessions.

Technical Specifications

Specification	Details
Brand	John Deere
Series	100 Series
Model	S140
Product Type	Riding Lawn Tractor
Power Source	Gasoline
Engine Power	22 HP / 16.4 kW
Engine Manufacturer/Model	44N677 (M44)
Engine Type	V-Twin
Engine Displacement	44.2 cu. in.
Valve Design	Overhead Valve
Engine Cooling	Air-Cooled
Lubrication	Full-Pressure
Oil Filter	Replaceable
Fuel Delivery	Pulse Pump & Carburetor
Fuel Type	Gasoline
Fuel Capacity	2.4 U.S. gal.
Fuel Gauge	Mechanical, Viewable From Seat
Fuel Tank Location	Rear
Cutting Width	48 in.
Deck Type	Edge™ Mower Deck
Number of Blades	3
Cutting Height Range	Approx. 1–4 in.
Blade Engagement	Electric PTO
Transmission	Hydrostatic
Drive Type	2-Wheel Drive
Transmission Control	Side-by-Side Pedals
Deck Lift	Spring-Assisted Hand-Grip Lever
Rear Tires	20 x 8-8
Battery	300 CCA
Charging System	Regulated 8 Amp
Starter	Electric / Bendix Type
Headlights	2 Standard LED
Hour Meter	Yes
Operator Seat	15 in.
Warranty	2 Years / 120 Hours Bumper-to-Bumper

John Deere confirms the 22 HP engine, 44N677 engine model, 2.4-gallon tank, hydrostatic transmission, 300-CCA battery, 8-amp charging system, LED headlights, and hour meter in its current technical specifications.

Cutting & Deck Configuration

Deck Width: 48 Inches
Deck Type: Edge™ Mower Deck
Blade Count: 3
Blade Type: Rotary
Cutting Height: Approximately 1–4 Inches
Deck Engagement: Electric PTO
Deck Lift: Spring-Assisted Hand-Grip Lever
Standard Clipping Configuration: Side Discharge

The 48-inch mower system uses three blades and provides an approximately 1-to-4-inch cutting-height range.

The wider deck is particularly useful for:

• Medium-to-large residential properties
• Wide open lawn areas
• Reducing total mowing passes
• Routine weekly lawn maintenance
• Properties where a 42-inch deck would require additional mowing time

Engine Configuration

Engine Power: 22 HP / 16.4 kW
Engine Model: 44N677 (M44)
Configuration: V-Twin
Displacement: 44.2 cu. in.
Cooling: Air-Cooled
Lubrication: Full-Pressure
Oil Filter: Replaceable
Fuel Delivery: Pulse Pump & Carburetor
Starting System: Electric

The V-Twin configuration provides smooth power delivery and is appropriately matched to the S140’s larger 48-inch deck.

Transmission & Drive Configuration

Transmission: Hydrostatic
Drive: 2-Wheel Drive
Control: Side-by-Side Foot Pedals
Forward Control: Foot Pedal
Reverse Control: Separate Foot Pedal

Hydrostatic drive means there is no traditional manual gear-selection process during normal mowing.

The operator can easily adjust travel speed when:

• Approaching obstacles
• Turning around landscaping
• Mowing near trees
• Backing into position
• Moving between open and confined lawn sections
• Working with compatible property-care accessories

John Deere specifically highlights the side-by-side pedal system for easier speed and direction control.

What’s Included

The standard John Deere S140 configuration includes:

• 1 × John Deere S140 Riding Lawn Tractor
• 1 × 22 HP V-Twin Gasoline Engine
• 1 × 48-Inch Edge™ Mower Deck
• 3 × Standard Rotary Cutting Blades
• 1 × Standard Side-Discharge Deflector
• Hydrostatic Drive System
• Side-by-Side Forward & Reverse Pedals
• Electric PTO Blade-Engagement System
• Installed Operator Seat
• Installed Steering Wheel
• Standard Operator Controls
• 2 × Standard LED Headlights
• 2.4-Gallon Fuel System
• Mechanical Fuel Gauge
• Hour Meter
• Battery & Electric Starting System
• Front Bumper
• Owner / Operator Documentation

Optional Accessories – Not Included

Unless specifically stated with your order, the following equipment is sold separately:

• Grass Bagger / Material Collection System
• Mulching Kit
• Utility Cart
• Lawn Sweeper
• Spreader
• Aerator
• Dethatcher
• Snow Blower
• Front Snow Blade
• Weather Enclosure
• Tractor Cover
• Tow-Behind Lawn Equipment
• Tire Chains
• Additional Weights
• Other John Deere Compatible Attachments

John Deere specifically markets baggers, carts, snow blowers, weather enclosures, and additional property-care attachments separately for its 100 Series tractors.

Clipping Management Configuration

Side Discharge

The standard mower configuration discharges grass clippings through the side of the mower deck.

Mulching

Mulching capability requires the appropriate compatible mulching equipment or kit where applicable.

Bagging

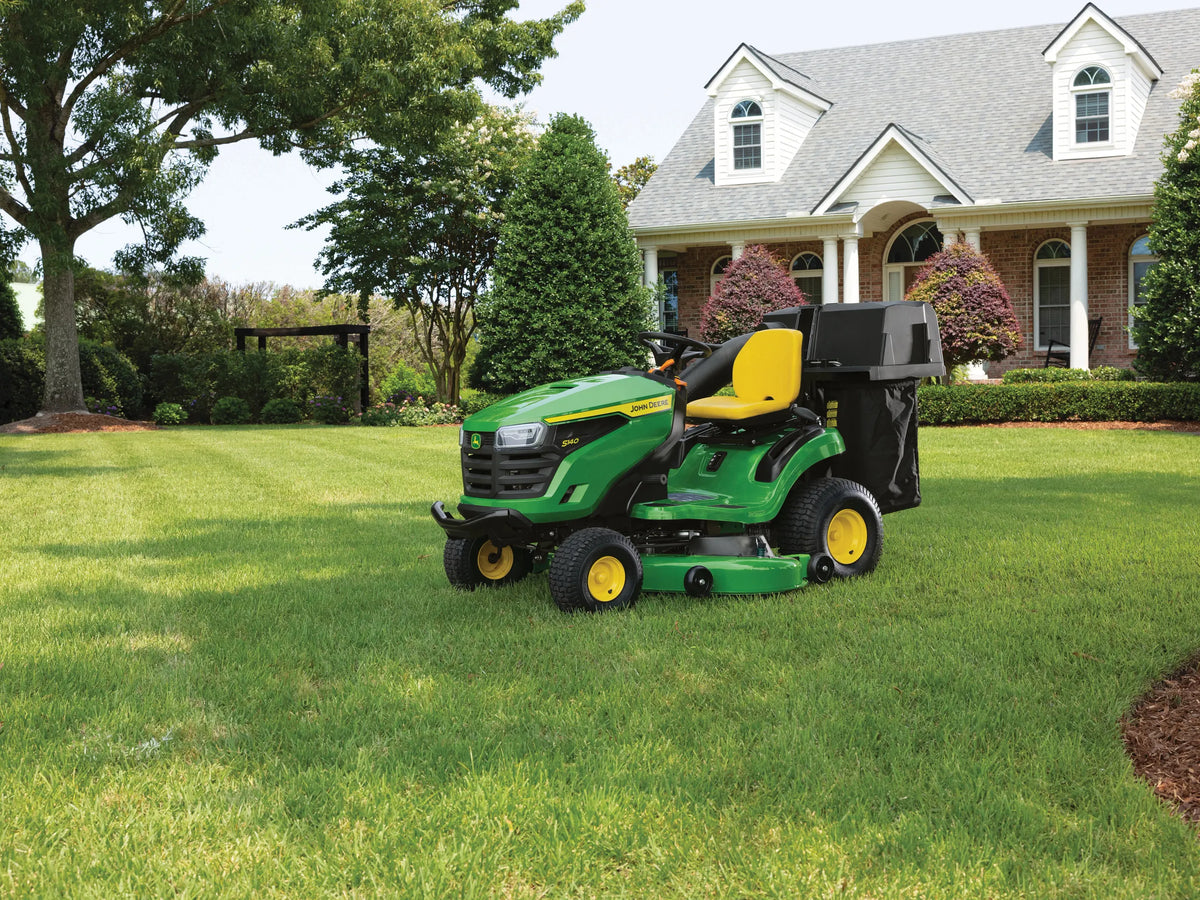

Grass and leaf collection requires a compatible optional material-collection or bagging system.

Important: A grass bagger or dedicated mulching kit should not be described as standard included equipment unless specifically packaged with the mower by the seller.

Operator Comfort & Convenience

The S140 is designed around straightforward residential operation.

Comfort and convenience features include:

• 15-inch operator seat
• Open operator platform
• Side-by-side drive pedals
• Easy-to-reach controls
• Electric PTO
• LED headlights
• Hour meter
• Mechanical fuel gauge visible from the seat
• Steering-wheel control
• Spring-assisted mower-deck adjustment

Ideal Applications

The John Deere S140 is ideal for:

• Medium-to-large residential lawns
• Routine weekly grass cutting
• Larger suburban properties
• Open lawn areas
• Properties with trees and landscaping
• Homeowners wanting a traditional riding tractor
• Side-discharge mowing
• Mulching with optional compatible equipment
• Grass collection with optional bagging equipment
• Light residential hauling with compatible carts
• Seasonal property maintenance
• General residential lawn care

Why Choose the John Deere S140?

Wide 48-Inch Cutting Path

The larger deck covers more grass per pass than smaller 42-inch lawn tractors.

22 HP V-Twin Power

Provides the power needed for routine residential mowing and the larger cutting system.

Easy Hydrostatic Operation

No traditional gear shifting is required during routine use.

Convenient Side-by-Side Pedals

Forward and reverse controls are positioned side by side for intuitive operation.

Electric PTO

Engaging and disengaging the mower blades is simple and convenient.

Attachment Versatility

Compatible optional John Deere attachments can expand the tractor beyond basic mowing.

John Deere Warranty Coverage

The S140 includes a 2-year or 120-hour bumper-to-bumper warranty, whichever applicable limit is reached first under John Deere’s warranty terms.
