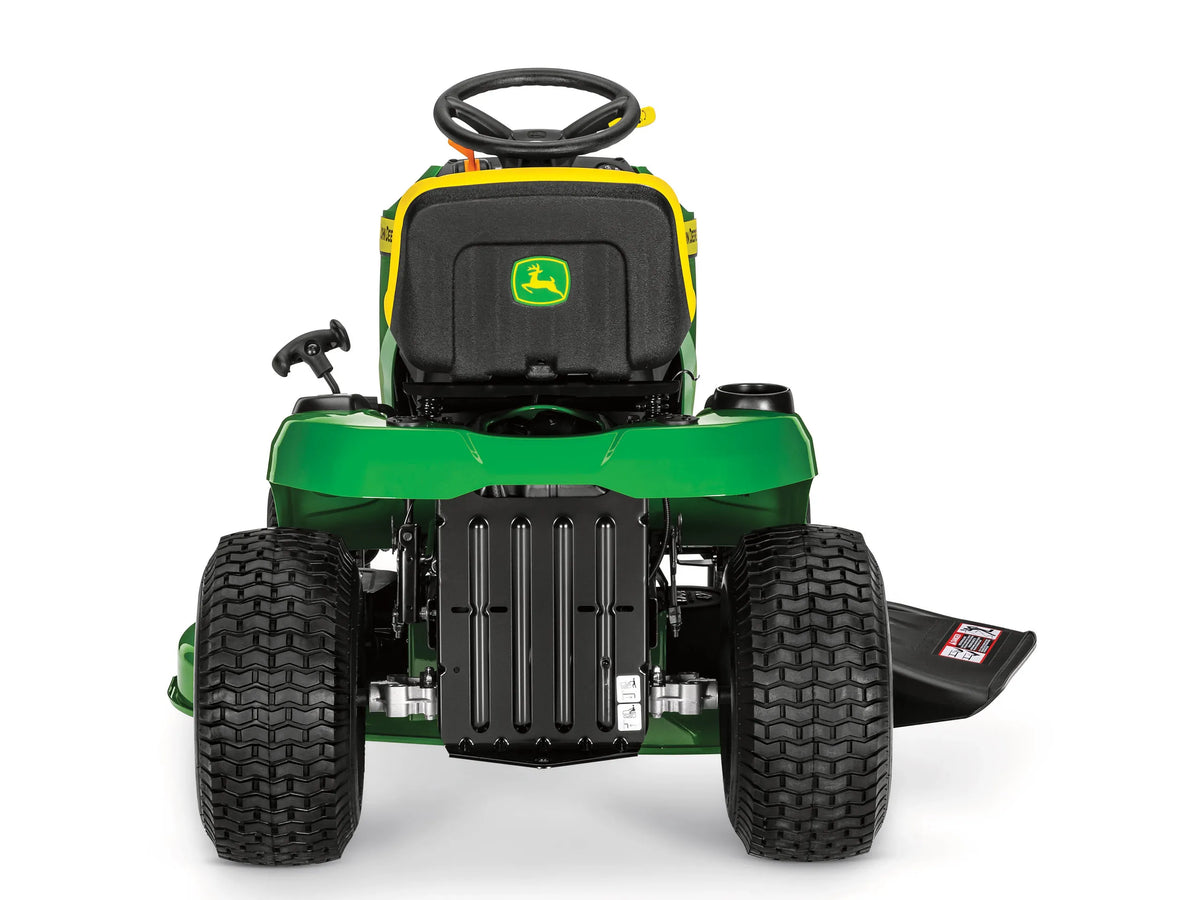

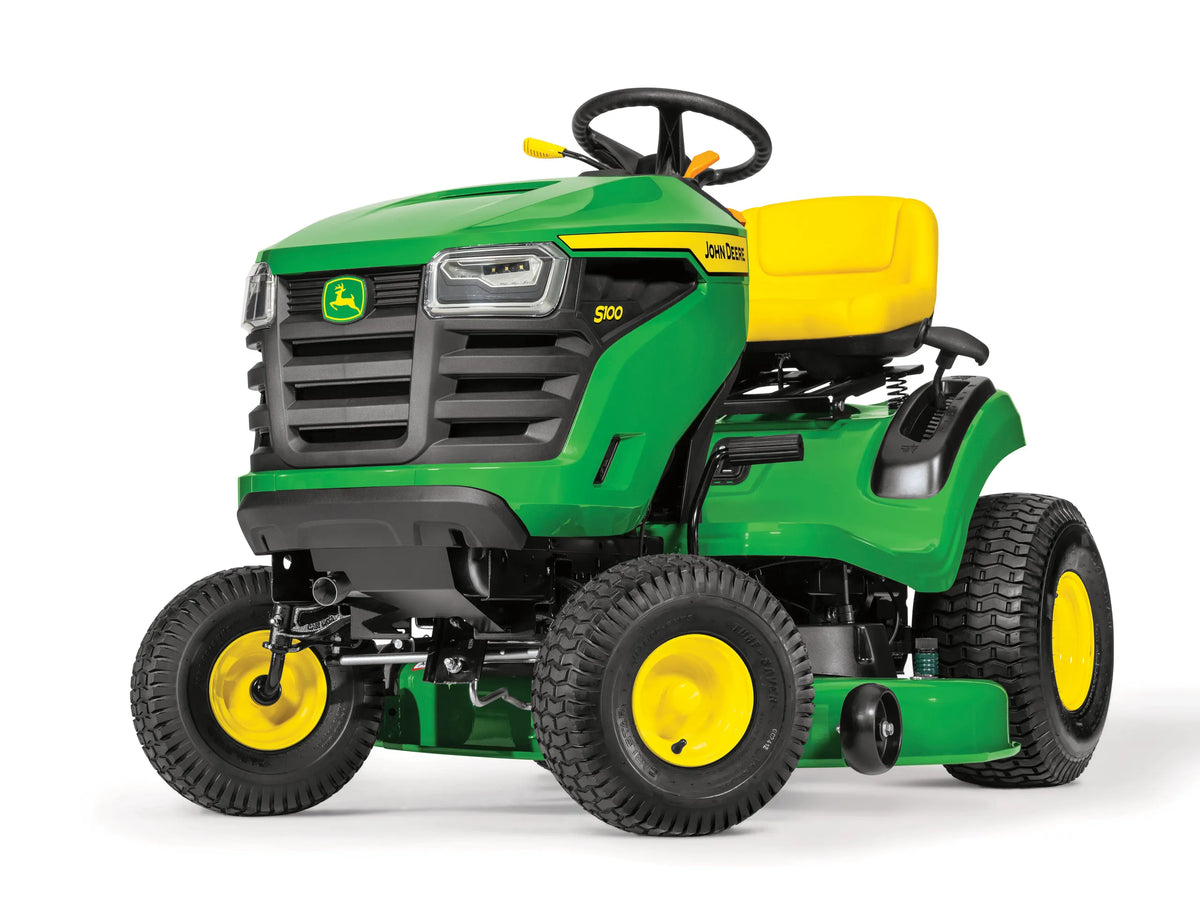

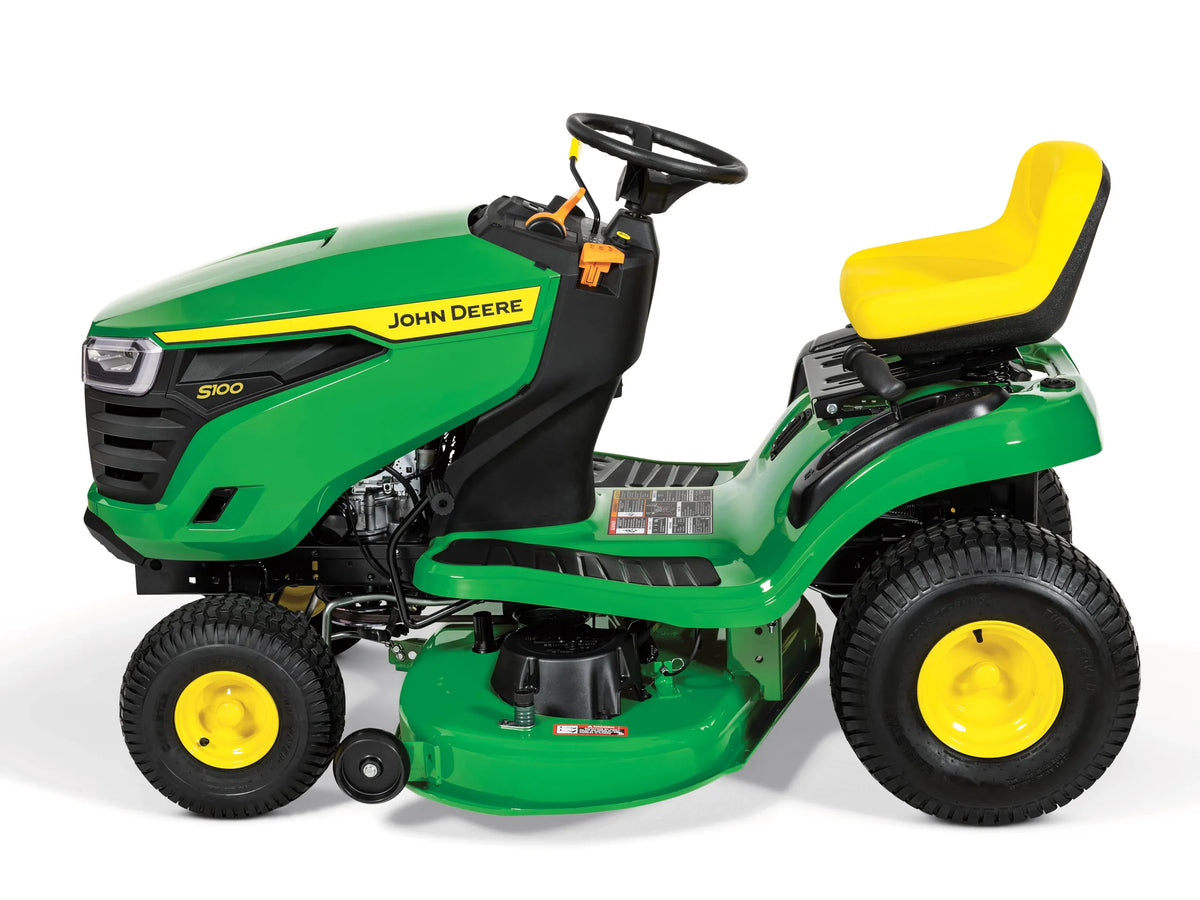

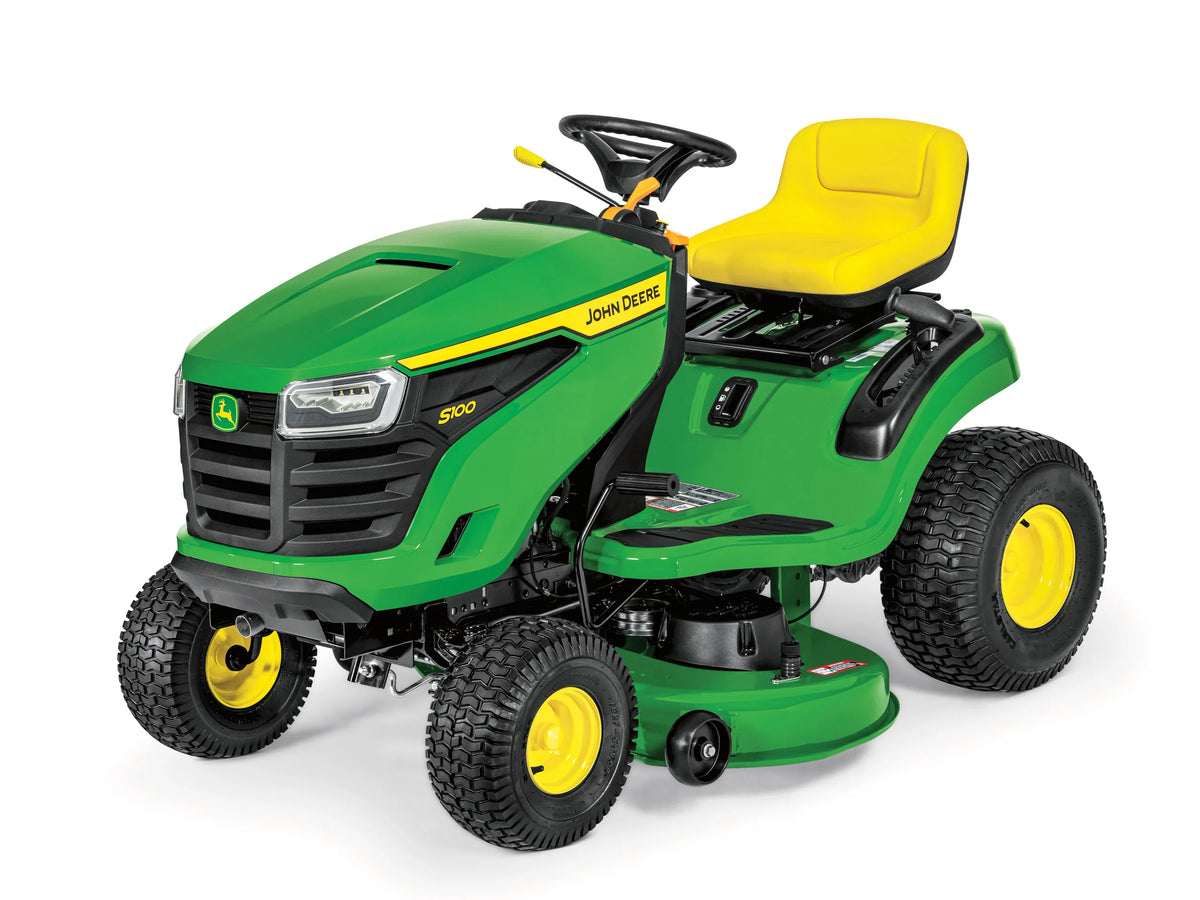

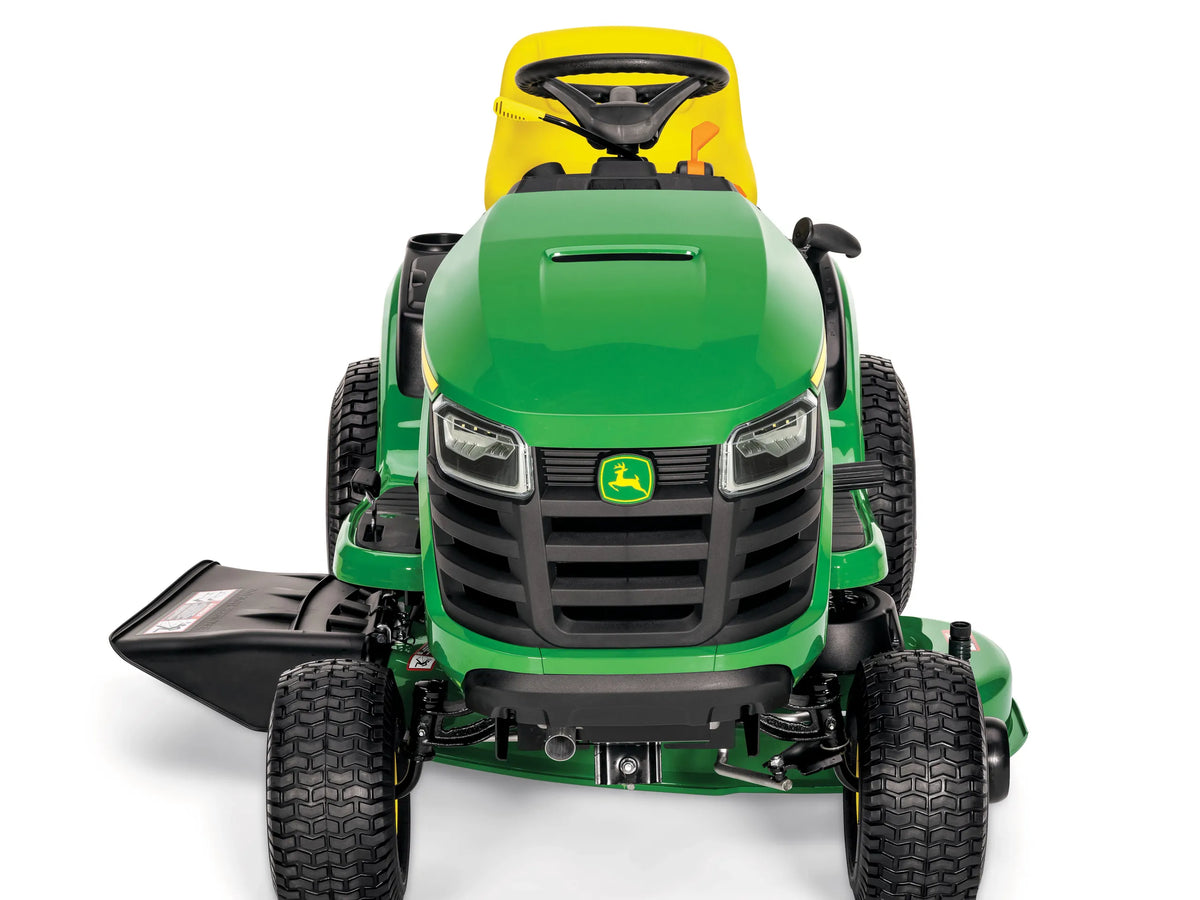

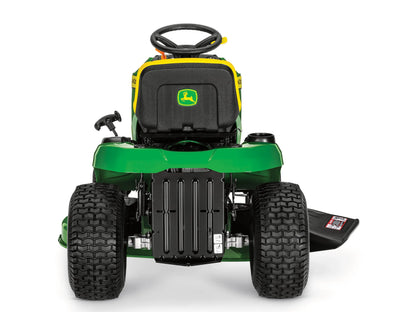

Product Description

The John Deere S100 42-Inch Lawn Tractor is a residential riding mower designed around straightforward controls, hydrostatic drive and John Deere’s 42-inch Edge cutting system.

Power is supplied by a 17.5 HP single-cylinder gasoline engine with a published displacement of 30.5 cubic inches, equivalent to approximately 500cc. John Deere identifies the engine as Model 31R977 (M31) and specifies an overhead-valve design, full-pressure lubrication and a replaceable oil filter.

Unlike a manual gear-drive lawn tractor, the S100 uses a hydrostatic transmission with side-by-side pedals. Separate forward and reverse pedals allow ground speed and direction to be controlled without manually shifting through fixed gears. The tractor uses conventional 2-wheel drive.

Cutting is handled by a 42-inch / 107cm Edge™ mower deck. John Deere uses this deck size throughout several models in the 100 Series, but the S100 remains distinguished by its 17.5 HP single-cylinder engine and mechanical deck/PTO configuration rather than the more powerful V-twin and electric-PTO setups found farther up the range.

The cutting height can be adjusted through approximately 1 to 4 inches, allowing the deck to be set for different maintained grass heights. A spring-assisted hand-grip lift lever helps raise and lower the mower deck.

The tractor carries 2.4 U.S. gallons / 9.1 liters of fuel, with the fuel tank positioned at the rear. John Deere’s current specification also identifies a mechanical fuel-level gauge that can be viewed from the operator position.

For residential ownership, the S100 carries John Deere’s 2-year / 120-hour bumper-to-bumper warranty, whichever limit is reached first, subject to the manufacturer’s warranty terms.

Key Features

• Current John Deere S100
• 100 Series residential lawn tractor
• 17.5 HP / 13kW engine
• Approx. 500cc displacement
• Single-cylinder configuration
• OHV engine design
• Full-pressure engine lubrication
• Replaceable oil filter
• Electric starting
• 42-inch Edge cutting system
• Hydrostatic transmission
• Side-by-side forward and reverse pedals
• 2-wheel drive
• Spring-assisted mower-deck lift
• Approximately 1–4-inch cutting-height range
• 2.4-gallon fuel tank
• Mechanical fuel gauge
• 20×8-8 rear tires
• Residential riding-mower configuration
• Assembled in Tennessee
• 2-year / 120-hour bumper-to-bumper warranty

Current John Deere specifications confirm the core 17.5 HP, 42-inch deck, hydrostatic transmission and warranty configuration.

Technical Specifications

These values are taken from John Deere’s current S100 and 100 Series product specifications.

Engine Configuration

17.5 HP Single-Cylinder Engine

Power: 17.5 HP / 13 kW
Displacement: 30.5 cu. in. / approx. 500cc
Model: 31R977 (M31)
Cylinders: 1
Type: Overhead Valve
Cooling: Air
Lubrication: Full Pressure
Oil Filter: Replaceable

John Deere identifies these specifications directly for the current S100.

Transmission Configuration

Two-Pedal Hydrostatic

The S100 uses:

Hydrostatic Transmission

with:

Side-by-Side Forward and Reverse Pedals

and:

2-Wheel Drive.

This should not be described as a manual 5-, 6- or 7-speed gear transmission.

Cutting Deck Configuration

42-Inch Edge™ Mower Deck

Cutting Width: 42 in. / 107 cm
Deck Family: Edge™ Cutting System

John Deere’s current 100 Series comparison confirms the 42-inch Edge deck for the S100.

Cutting Height Configuration

John Deere mower documentation lists an approximate height-of-cut range of:

1–4 Inches / 25–100 mm.

Deck positioning is controlled through a:

Spring-Assisted Hand-Grip Lever.

Fuel Configuration

2.4-Gallon Fuel Tank

Fuel Capacity: 2.4 U.S. gal. / 9.1 L

The tank is positioned at the rear and includes a mechanical fuel-level indication visible from the operator position.

Tire Configuration

Rear Tires

20 × 8-8

John Deere’s current S100 key specification confirms this rear-tire size.

Deck Lift Configuration

The S100 includes a:

Spring-Assisted Hand-Grip Deck Lift

designed to reduce the effort required to raise and lower the 42-inch mower deck.

Clipping Configuration

The standard 42-inch Edge deck is designed primarily for mowing and side-discharge operation.

Compatible John Deere equipment can provide additional clipping-management options such as:

• Mulching
• Grass collection

These accessory configurations should be treated as optional unless your specific retail bundle includes them.

What’s Included

Standard mower configuration includes:

• 1 × John Deere S100 Lawn Tractor
• 17.5 HP single-cylinder engine
• 42-inch Edge mower deck
• Hydrostatic transmission
• Side-by-side forward/reverse pedals
• Starting battery
• Operator seat
• Standard cutting blades
• Deck-lift system
• Factory safety controls
• Product documentation

Optional Equipment – Not Included Unless Bundled

Compatible accessory categories may include:

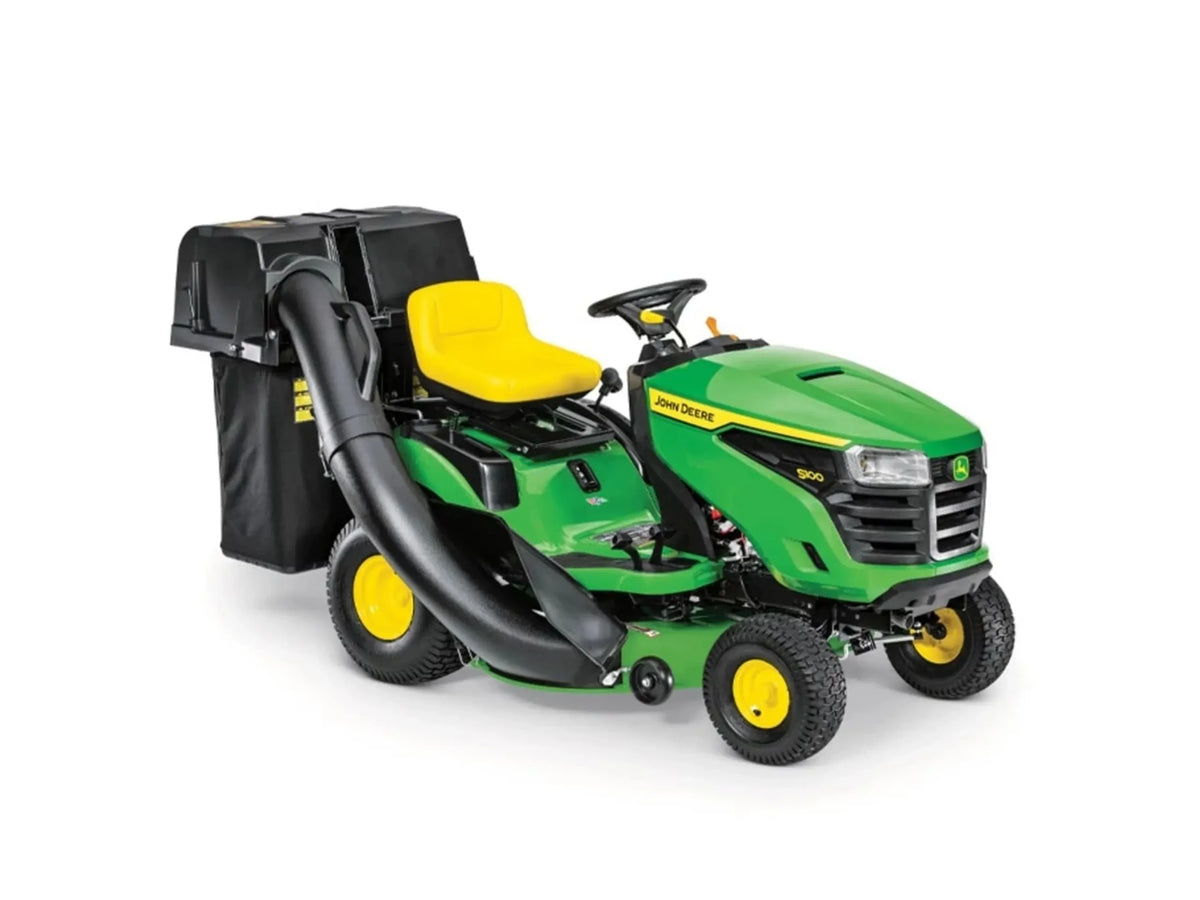

• 42-inch grass collection system
• Mulching attachment
• Tow-behind utility cart
• Spreader
• Aerator
• Lawn sweeper
• Tractor cover
• Seasonal lawn-care attachments

Only list accessories as included if they are actually part of the package being sold.

Warranty Information

John Deere 2-Year / 120-Hour Bumper-to-Bumper Manufacturer Warranty, whichever occurs first, subject to John Deere warranty terms and exclusions.
