Product Description

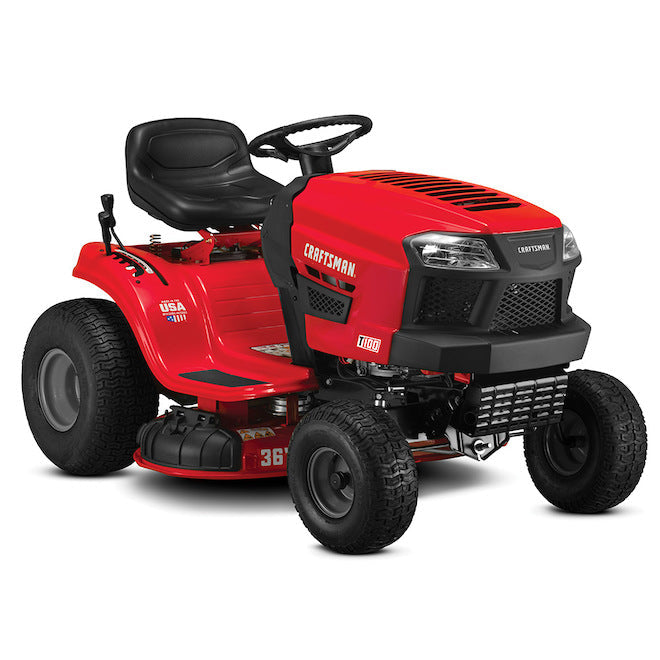

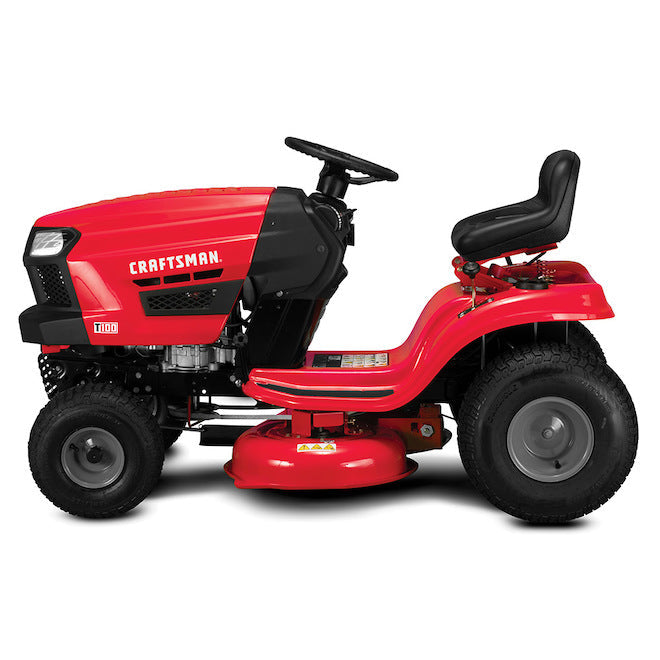

The CRAFTSMAN T100 36-Inch Riding Lawn Tractor is a compact front-engine mower designed for residential lawns where maneuverability and a narrower cutting deck are useful.

Power comes from an 11.5 HP Briggs & Stratton single-cylinder gasoline engine. The exact CMXGRAM201302 configuration is listed by Lowe’s with a 344cc displacement, providing power for the tractor’s rear-wheel-drive system and 36-inch cutting deck.

The T100 uses a 7-speed manual gear-drive transmission, allowing the operator to select among fixed travel-speed ranges rather than using a hydrostatic pedal system. Its compact chassis and 18-inch turning radius help the tractor maneuver around landscaping, yard obstacles and tighter residential spaces.

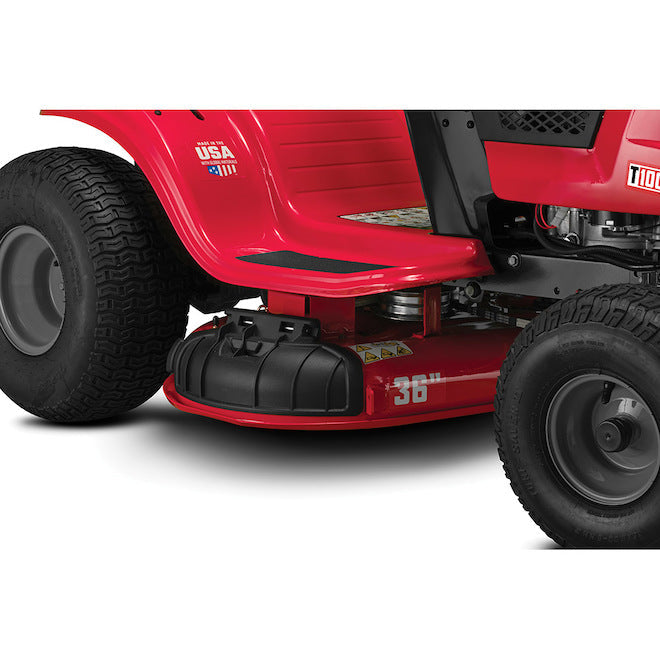

A 36-inch reinforced stamped-steel deck provides a narrower cutting footprint than typical 42- or 46-inch residential tractors. CRAFTSMAN specifically positions this deck as useful for fitting through many gates and confined yard areas.

The deck uses two cutting blades and provides a cutting-height range from 1.5 to 3.75 inches through five adjustment positions. Standard clipping management supports side discharge and mulching, while a compatible rear bagger can be fitted separately.

Operator features include a turn-key starting system, adjustable low-back seat, headlights, cup holder and ergonomically positioned controls.

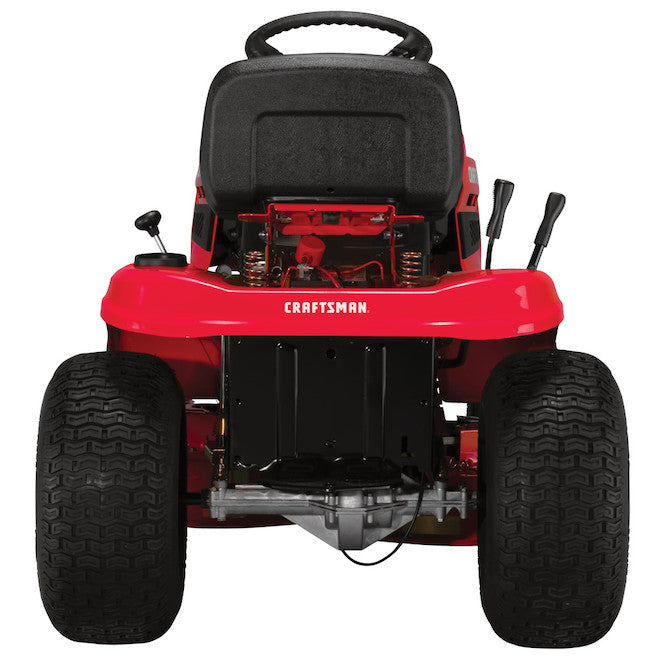

The tractor uses 15-inch front tires and 20-inch rear Turf Saver-style tires, while its rear-wheel-drive layout and standard differential provide conventional lawn-tractor traction.

Key Features

• Exact current CRAFTSMAN Model CMXGRAM201302
• T100 residential lawn tractor
• 11.5 HP Briggs & Stratton engine
• 344cc single-cylinder configuration
• Electric turn-key starting
• 36-inch cutting width
• Reinforced stamped-steel deck
• 14-gauge deck specification
• Two cutting blades
• Five cutting-height positions
• 1.5–3.75-inch cut range
• Manual blade engagement
• Seven-speed gear-drive transmission
• Rear-wheel drive
• 18-inch turning radius
• Up to 5.5 MPH forward speed
• Mulching capable
• Side discharge
• Bagger capable
• Adjustable low-back seat
• Headlights
• Cup holder
• 15-inch front tires
• 20-inch rear tires
• 1.3-gallon fuel tank
• 3-year limited warranty

Technical Specifications

Specification	CRAFTSMAN T100
Brand	CRAFTSMAN
Series	T100
Manufacturer Model	CMXGRAM201302
Product Type	Lawn Tractor
Power Source	Gasoline
Engine Brand	Briggs & Stratton
Engine Power	11.5 HP
Engine Displacement	344cc
Engine Type	Single Cylinder
Starting System	Turn-Key
Transmission	7-Speed Manual / Gear
Drive Type	Rear-Wheel Drive
Differential	Standard
Cutting Width	36 in.
Deck Construction	Stamped Steel
Deck Gauge	14 Gauge
Blade Count	2
Blade Speed	3,758 RPM
Blade Engagement	Manual
Cutting Height	1.5–3.75 in.
Height Positions	5
Mulching	Yes
Side Discharge	Yes
Bagger Capable	Yes
Turning Radius	18 in.
Maximum Forward Speed	5.5 MPH
Fuel Capacity	1.3 gal.
Engine Oil Capacity	48 oz.
Front Wheels	15 in.
Rear Wheels	20 in.
Overall Length	72 in.
Overall Width	36 in.
Product Weight	490 lb.
Seat	Adjustable Low-Back
Headlights	Yes
Cup Holder	Yes
Grease Fittings	Yes
Warranty	3-Year Limited

The CMXGRAM201302 specification page confirms the 344cc engine, manual/gear transmission, 36-inch deck, five cutting-height positions, 14-gauge deck, 1.3-gallon fuel tank and 490-pound listed weight.

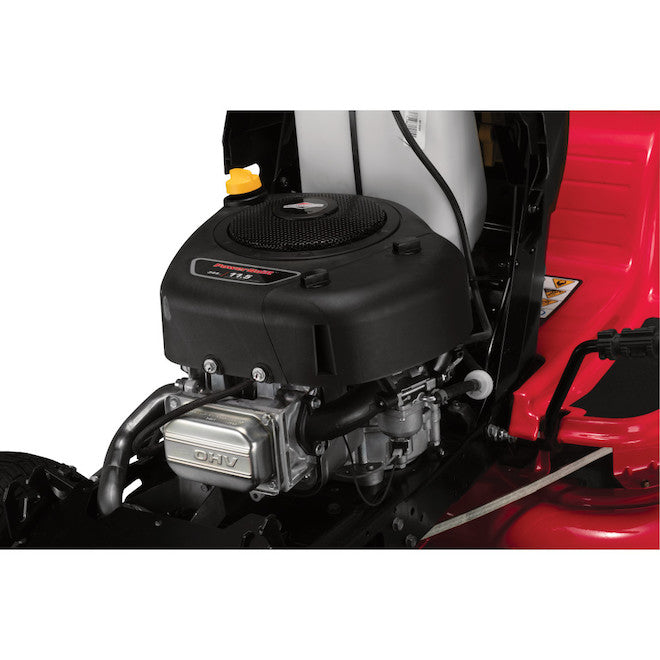

Engine Configuration

Briggs & Stratton 344cc Single-Cylinder

Engine Brand: Briggs & Stratton
Gross Power: 11.5 HP
Displacement: 344cc
Configuration: Single Cylinder
Starting: Electric / Turn-Key

CRAFTSMAN states the 11.5 HP rating as Briggs & Stratton gross horsepower measured under the applicable SAE standard.

Transmission Configuration

7-Speed Gear Drive

The T100 uses a:

7-Speed Manual / Gear Transmission

rather than a hydrostatic transmission.

The operator selects the appropriate speed range based on the mowing situation.

Drive Configuration

Drive Type: Rear-Wheel Drive

Maximum Forward Speed: Up to 5.5 MPH.

Cutting Deck Configuration

36-Inch Reinforced Stamped Deck

Deck Width: 36 in.
Deck Material: Steel
Deck Type: Reinforced Stamped
Deck Gauge: 14 Gauge
Number of Blades: 2

CRAFTSMAN highlights the 36-inch deck’s compact width as useful for tighter spaces and many residential gates.

Cutting Height Configuration

The T100 provides:

5 Height Positions

from:

1.5 Inches

to:

3.75 Inches.

Blade Engagement

The mower uses:

Manual PTO / Manual Deck Engagement.

Mulching Configuration

The current CMXGRAM201302 is listed as:

Mulching Capable

and Lowe’s identifies the mulching capability as included for this configuration.

Side-Discharge Configuration

The mower supports:

Side Discharge.

Bagger Configuration

The T100 is:

Bagger Capable

but the grass bagger itself is:

Not Included.

Lowe’s currently identifies matching bagger item:

1461307

for the CMXGRAM201302 configuration.

Maneuverability

18-Inch Turning Radius

CRAFTSMAN specifies an:

18-Inch Turning Radius

for maneuvering around landscaping and other obstacles.

Tire Configuration

Front Wheels

15 in.

Rear Wheels

20 in.

The T100 uses lawn-oriented Turf Saver-style wheel/tire equipment.

Fuel Configuration

Fuel Capacity: 1.3 gal.

Engine Oil Capacity: 48 oz.

Operator Comfort

The standard tractor includes:

• Adjustable low-back seat
• Ergonomically placed controls
• Cup holder
• Headlights

These features are listed for the current CMXGRAM201302 configuration.

Dimensions & Weight

Overall Length

72 in.

Overall Width

36 in.

Product Weight

490 lb.

Cutting Width

36 in.

What’s Included

The standard mower package includes:

• 1 × CRAFTSMAN T100 Riding Lawn Tractor
• Briggs & Stratton 11.5 HP / 344cc engine
• 36-inch stamped-steel mower deck
• Two cutting blades
• Seven-speed gear-drive transmission
• Starting battery
• Standard side-discharge system
• Mulching capability
• Adjustable operator seat
• Headlights
• Factory mower controls and safety systems
• Product documentation

CRAFTSMAN’s official page identifies the included primary product as one CMXGRAM201302 riding mower.

Optional / Compatible Accessories

Compatible accessory categories include:

• Rear grass bagger
• Replacement blades
• Mulching blade set
• Drive belts
• Mulch-kit components
• Replacement oil filter
• Replacement spark plug

Lowe’s currently lists matching accessory identifiers for this exact CMXGRAM201302 configuration.

Warranty Information

CRAFTSMAN 3-Year Limited Manufacturer Warranty, subject to manufacturer terms, exclusions and qualifying purchase requirements.
